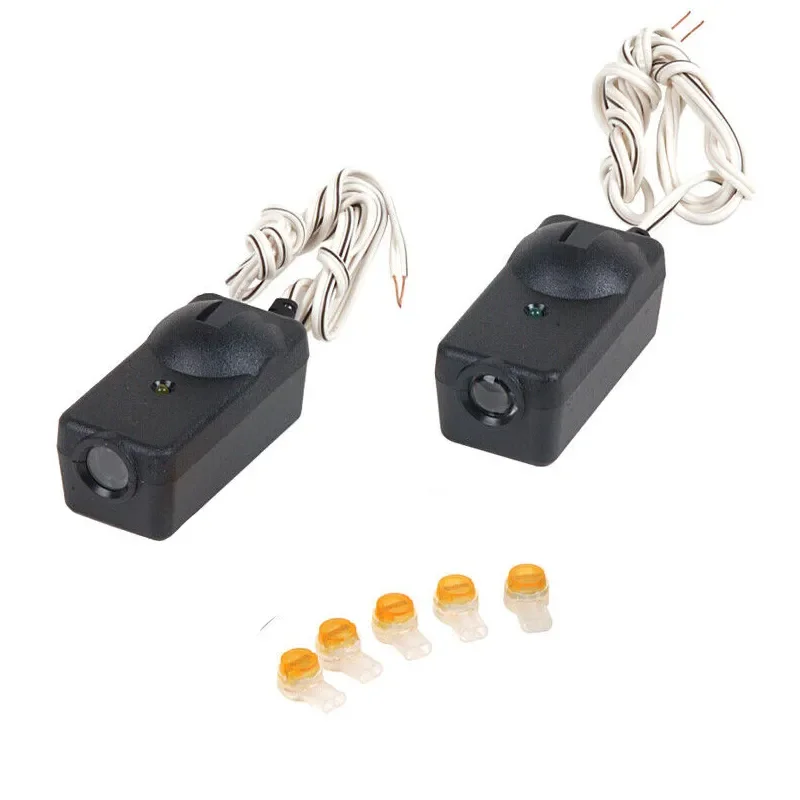

For Liftmaster 41A5034 Infrared Safety Sensor is an infrared safety beam for residential and commercial garage door operators. The unit mounts at floor level on each side of the door opening; if the beam is interrupted during the closing cycle, the motor head reverses the door to prevent injury or property damage. The sensor is wired directly to the motor head’s safety terminals and is universally compatible with operators accepting a standard two-wire photo-eye input.
Technical Specification
| Type | Infrared through-beam photo eye |
|---|---|
| Range | 8 m maximum |
| Output | Relay (NC/NO) |
| Power supply | 12–24 V DC (from motor head) |
| Wiring | 2-wire (signal) + 2-wire (power) |
| Housing material | ABS |
| Mounting | Wall bracket with M3 screws |
Compatibility Reference
| Compatible motor head brands | Wiring |
|---|---|
| Chamberlain / LiftMaster / Merlin / BND | 2-wire photo-eye input |
| Most residential chain-drive operators | 2-wire photo-eye input |
IP & Compliance Statement
This accessory is an independent Gemu RF design and carries no OEM affiliation. Installation is performed at the customer’s discretion and does not void the motor head warranty unless the installation is performed by an unauthorized technician.
- RoHS: compliant
- Material: ABS, recyclable
MOQ: 500 pcs · Sample run available · AQL 5% sampling standard · 12-month warranty.
